Security PVC Coated Steel Wire Fencing For Highway / Frame Welded Mesh Fence
Product Description
The frame fence is a kind of flexible assembly products, widely used in highway, railway, etc.;
Can be made into a permanent net wall, and can be used as a temporary isolation network, only need to use different column fixation can be achieved.
Material: Iron, Stainless steel
Surface Treatment: Galvanized, Hot-dip galvanized, Galfan coated, PVC coated, Electrostatic polyester coated, PVC painting, Powder coated
Wire Mesh Type: Welded wire mesh, Chain link wire mesh
Feature:
Beautiful appearance,Wide view
Vandal resistant, Low maintenance
Strong and durable
Easy installation, Convenient transport
Specification of Frame Fence
| Fence panels |
| Wire diameter | 2.8mm-6mm,4mm/5mm is most popular |
| Mesh/Opening | 50x100/50x150/50x200/60x100/60x200,80 x 160; 80 x 200mm etc. |
| 75x150/75x200 as your request |
| Length of fence panel | 2m,2.5m ,3m or as your request |
| Height of fence panel | 1m,1.2m,1.5m,1.53m,1.7m,1.8m,2m,2.4m,2.5m |
| Surface treatment | Electric Galvanized then PVC coated |
| Electric Galvanized then PVC sprayed/painted |
| Hot-dipped Galvanized then PVC coated |
| Hot-dipped Galvanized then PVC / powder sprayed/painted |
| Hot-dipped Galvanized or Electric Galvanized |
| Frame | Size: 14mm × 20mm, 20mm × 30mm, Thickness : 1.5-2 mm |
| Panel style | Flat top, bending top |
| Connection | Rain hat connection card anti-theft bolts |
Suitable Post:
Mushroom shape post, Peach shape post
Square post, The post including V shape post
| Fence Post |
| Post Style | Post Size | Post height |
| Rectangle post | 40x60x1.2mm;40x60x1.5mm;40x60x2mm | 1.63m;1.83m;2.1m |
| Square Post | 40x40x1.2mm;40x40x1.5mm;60x60x2mm; | 2.13m;2.2m;2.23m; |
| 60x60x2.5mm | 2.4m |
| Peach post | 50x70mm;70x100mm | 2.53m;2.6m |
| Round post | 38mmx1.2mm;40x1.5mm;42x1.5mm;48x2mm | 2.63m |
Frame fence are used for highways, railways, airports, residential area, district, sea ports,
gardens, Seine enclosure fence, district, development zone cars, farming, animal husbandry or protective barrier.such as metal frame pool fencing,etc
Product Tags:
|
|

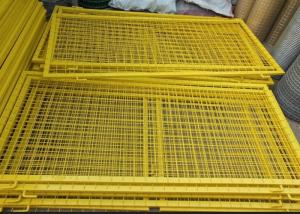

Durable Powder Coated Steel Wire Fencing Panels With Frame Finishing Images
|
